FORD FUSION 06-12 (2WD/AWD) INNOVATIVE SERIES COILOVER

The Innovative Series is the best choice for street use, spirited driving and occasional track use. This coilover suspension provides improved performance while keeping really good comfort; it offers everything you need to enjoy driving your car. The regular default version is designed to allow you to adjust the ride height from OEM to approximately 3 inches lower. It also keeps the comfort level close to OEM ride quality., coilover

US$ 1 195.00 +tx

Version

The regular version is the configuration available on this product due to suspension configuration or specific shaped springs. It is designed to gives approximately 3 inch of adjustment range from stock ride height on most application. The spring rate used is the best to keep a close to OEM comfort level while improving handling performance and reducing suspension travel. Custom spring rate is not offered on this application due to the specific shaped spring. Regular version is normally designed to reach up to a tire to fender fitment at the lowest ride height setting.

Springs upgrade

Spring customization and swift spring upgrade only apply on the linear springs of this application. Swift upgrade cost is for 2 springs. Specific shaped springs are not available in different rate and length.

Keep default spring rate from the selected version. The spring rate for is version is selected to keep optimal comfort and prevent rubbing in the drop range each version offer.
We can change the spring rates and damping based on your needs. Scale don't have as many length and rate as Swift springs so make sure the asked spring rate is possible with your selected version. If you have specific needs but have no spring rate in mind, please email us. (No additional costs)
Made in Japan with high quality material, Swift offer a large range of rate and size. Well known for the precision of their rates in racing or large range of crazy rates in short springs for extreme fitment, these are top of the line in linear springs. This option may be needed on some extreme low version. Email us for additional information on the rate to fit your needs.

Springs Color

Powdercoating colour options for your springs. Color mixes are made on order so allow 1-2 additional weeks to have them done.

Lock Ring Color

Choose the anodized color of your lock rings between dark blue or black.

Hardware Upgrade

Replace the default steel nuts and bolt for stainless steel

Order total:
Get it just right!

Wanna make sure what is the right product configuration for you?

About this coilover

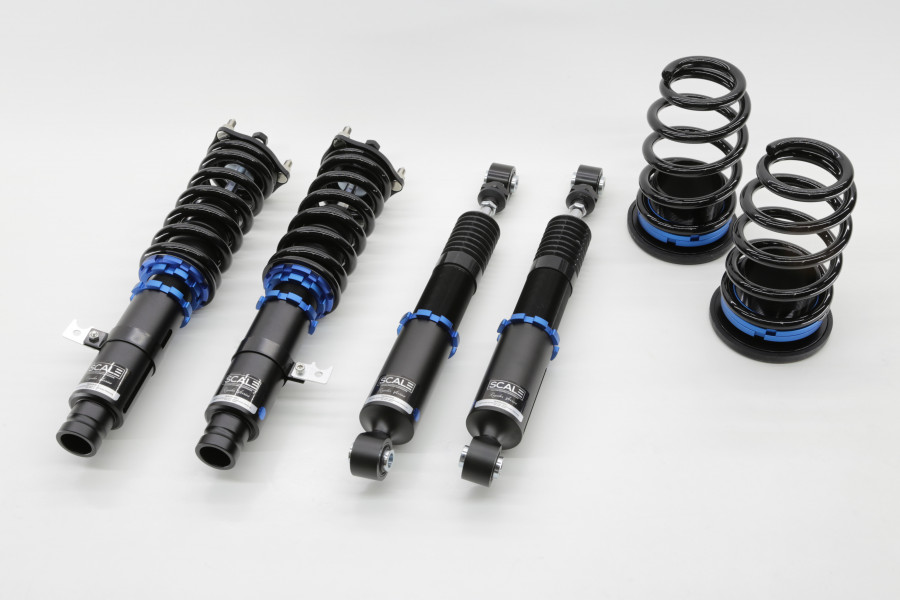

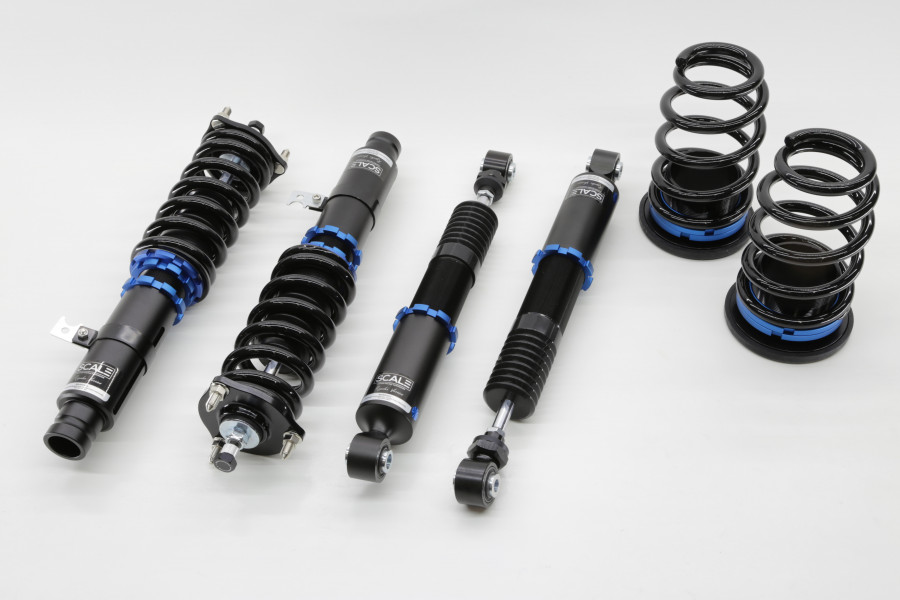

The SCALE FORD FUSION 06-12 (2WD/AWD) INNOVATIVE SERIES COILOVER coilover is fully adjustable and customizable to fit each customer's needs.

This coilover suspension upgrade is designed to achieve a perfect balance of street comfort and increased performance. This suspension system allows you to easily adjust your ride height while improving handling performance of your car.

Our patented scaled system design allows easier and more precise adjustment and ensures equal height on each corner. Each shock is equipped with 24 levels of dampening adjustment to fine-tune the valving efficiency.

The Part : FD16-IS coilover shocks are handcrafted and assembled to your specs at SCALE facilities.

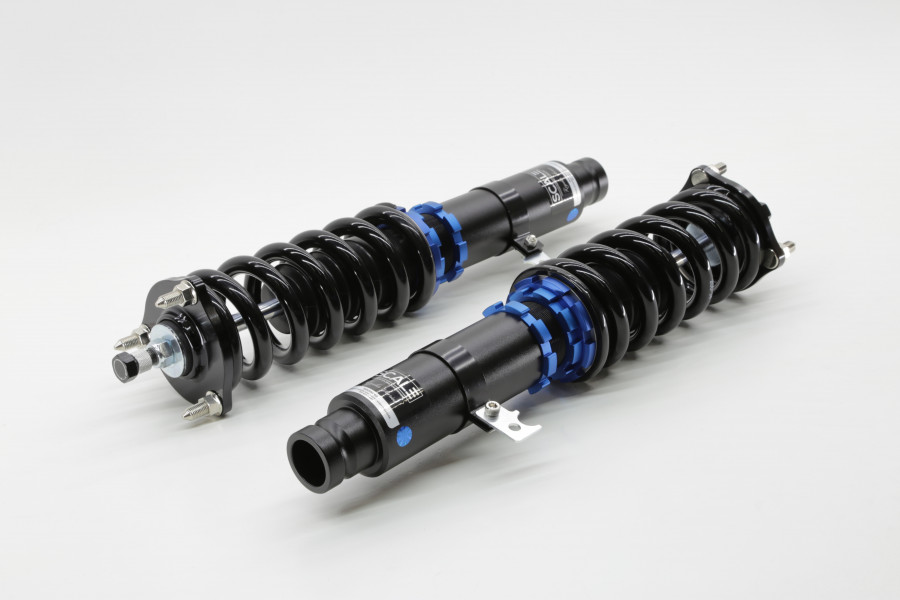

This double-wishbone front configuration does not allow the use of a camber plate, as the shock is not directly connected to the wheel. If additional camber adjustment is needed after lowering your car, some specialized company may offer adjustable control arm.

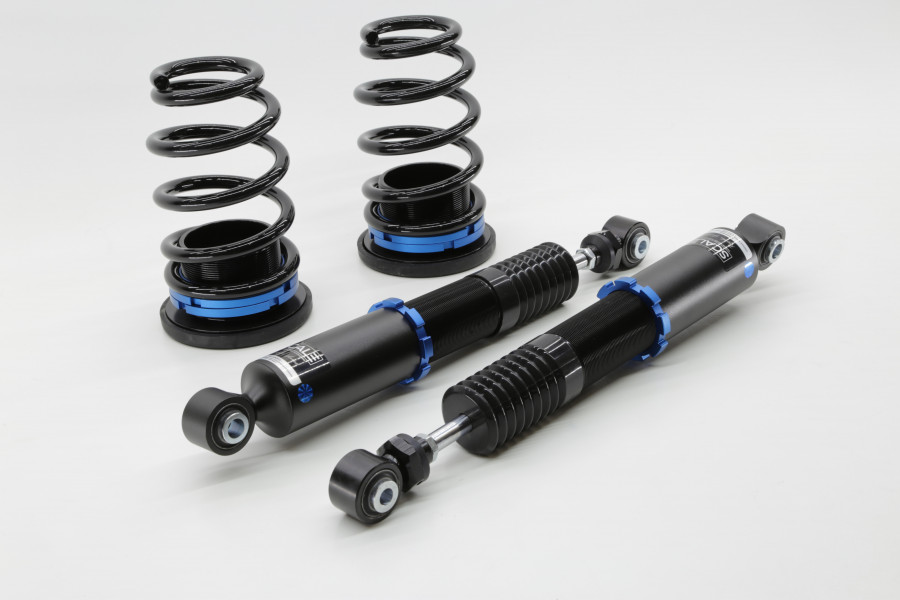

This rear divorced spring configuration uses a specifically shaped spring. Therefore, custom spring rate or length or Swift spring upgrades are not offered for the rear of this application.

Shock has no direct impact on wheel alignment, so if you need more adjustment than what your car offers from the factory, you can check if a specialized company provides adjustable control arms.

Our mono-tube shock absorber are using high-quality CNC piston valves, synthetic oil and high-pressure nitrogen gas contained within one tube.

As this application uses a specifically shaped spring, only the regular version is available and the custom spring rate or Swift spring upgrade only applies to the linear spring of this application. The swift upgrade price is for 2 springs only.

Feel free to email our sales for any specific needs so they can help you figure out the best configuration for you.

Specs

Additional information

Weight 49 lbs
Dimensions 13 × 13 × 26 in
Warranty

Aluminium Type

Anodized Body

Assembly

,

Availability

Body Diameter

Default Spring Color

Internal Design

Number of Valving Selections

Powdercoated Body

Pressurized Charge

Shock Oil Type

Timeframe for Delivery

Condition

Make

Model

Year

, , , , , ,

Suspension Type Front

Suspension Type Rear
