MERCEDES-BENZ E-CLASS RWD 10-16 (W212) INNOVATIVE SERIES COILOVER

View all specs
The Innovative Series is the best choice for street use, spirited driving and occasional track use. This coilover suspension provides improved performance while keeping really good comfort; it offers everything you need to enjoy driving your car. The regular default version is designed to allow you to adjust the ride height from OEM to approximately 3 inches lower. It also keeps the comfort level close to OEM ride quality., EDC (Electronic Damping Cancellation) Kits remove the error messages that can happen when upgrading a suspension on a car with electronically controlled dampers., coilover

US$ 1 295.00 +tx

Version *

The regular version is the mostly used configuration. It is designed to gives approximately 3 inch of adjustment range from stock ride height on most application. In default configuration, the spring rate used is the best to keep a close to OEM comfort level while improving handling performance and reducing suspension travel. It can also be customized with different spring rate for spirited driving or occasional track use. Regular version is normally designed to reach up to a tire to fender fitment at the lowest ride height setting.
Our low version is ideal for a tighter fitment and larger wheels. The 15-20% stiffer spring rate used significantly reduce the suspension travel to prevent rubbing issues when you plan to ride pretty low, tuck the tires or use aggressive offset where the wheel poke out of the fender. It’s still comfortable for street use but certainly feels a bit sportier. The low version use components to give 1 to 1.5 extra inch of drop compared to the regular version of the same application. This means the tire can be partially hidden into the fender at lowest setting but will stay 1-1.5 inch lower than factory ride height when adjusted at highest setting.

Camber Plates *

It allow to easily adjust front camber back to manufacturer specification after lowering your car or add more camber if your wheel specs cause minor rubbing issues. Adjustment range vary depending of the design used for each application.

Gravitational Bearing *

Add a bearing between the camber plate and the spring

(+US$ 103.60)
This option, made to be used with camber plates, allow the strut to turn freely when turning the wheels. It reduce the friction normally applied to the camber plate spherical bearing and and will ensure smooth operation for longer. The sealed bearing is made of stainless steel for corrosion resistance.

Springs upgrade *

Keep default spring rate from the selected version. The spring rate for is version is selected to keep optimal comfort and prevent rubbing in the drop range each version offer.
We can change the spring rates and damping based on your needs. Scale don't have as many length and rate as Swift springs so make sure the asked spring rate is possible with your selected version. If you have specific needs but have no spring rate in mind, please email us. (No additional costs)
(+US$ 349.65)
Made in Japan with high quality material, Swift offer a large range of rate and size. Well known for the precision of their rates in racing or large range of crazy rates in short springs for extreme fitment, these are top of the line in linear springs. This option may be needed on some extreme low version. Email us for additional information on the rate to fit your needs.

Springs Color *

Powdercoating colour options for your springs. Color mixes are made on order so allow 1-2 additional weeks to have them done.

Default Black Color
Color swatch image
Root Beer (+US$ 117.42)
Color swatch image
Bloody Lips (+US$ 117.42)
Color swatch image
Ghost Grey (+US$ 117.42)
Color swatch image
Beach Ball Blue (+US$ 117.42)
Color swatch image
Illusion Purple (+US$ 117.42)
Color swatch image
Gold Digger (+US$ 117.42)
Color swatch image
Jamaican Teal (+US$ 117.42)
Color swatch image
Hot Rod Orange (+US$ 117.42)
Color swatch image
New York Yellow (+US$ 117.42)
Color swatch image
Firecracker Red (+US$ 117.42)
Color swatch image
Polar White (+US$ 117.42)
Color swatch image
Lollypop Lime (+US$ 117.42)
Color swatch image
Neon Yellow (+US$ 117.42)
Color swatch image
Custom Color (+US$ 142.33)

Lock Ring Color *

Choose the anodized color of your lock rings between dark blue or black.

EDC Delete Kit *

(+US$ 298.89)
Magnetic Ride Delete Unit (Avoid any error message on the Dashboard when changing the original suspension.)

Hardware Upgrade *

Replace the default steel nuts and bolt for stainless steel

(+US$ 32.02)
Order total:
Get it just right!

Wanna make sure what is the right product configuration for you?

chat below
contact us

About this coilover

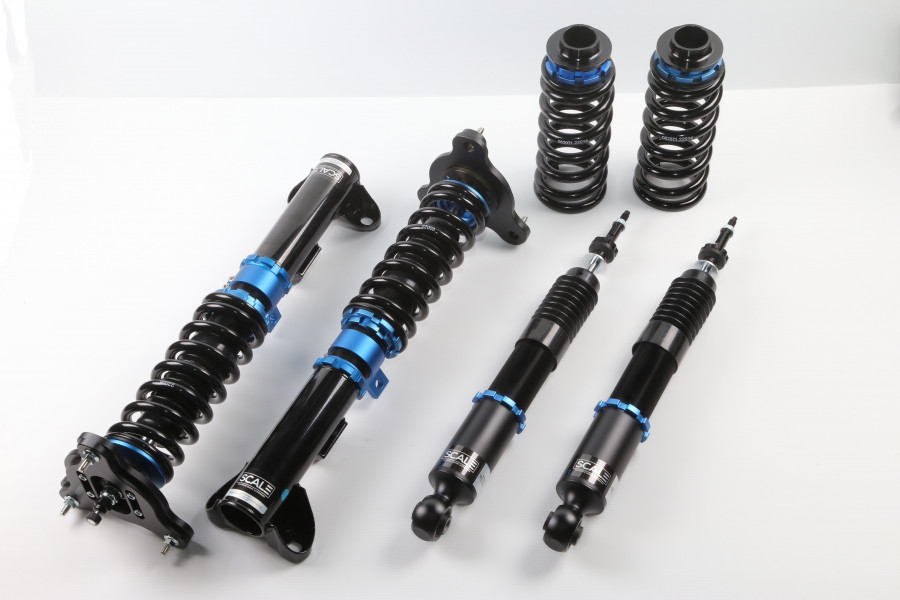

The SCALE MERCEDES-BENZ E-CLASS RWD 10-16 (W212) INNOVATIVE SERIES COILOVER coilover is fully adjustable and customizable to fit each customer's needs.

This coilover suspension upgrade is designed to achieve a perfect balance of street comfort and increased performance. This suspension system allows you to easily adjust your ride height while improving handling performance of your car.

Our patented scaled system design allows easier and more precise adjustment and ensures equal height on each corner. Each shock is equipped with 24 levels of dampening adjustment to fine-tune the valving efficiency.

The Part : MB07-IS coilover shocks are handcrafted and assembled to your specs at SCALE facilities.

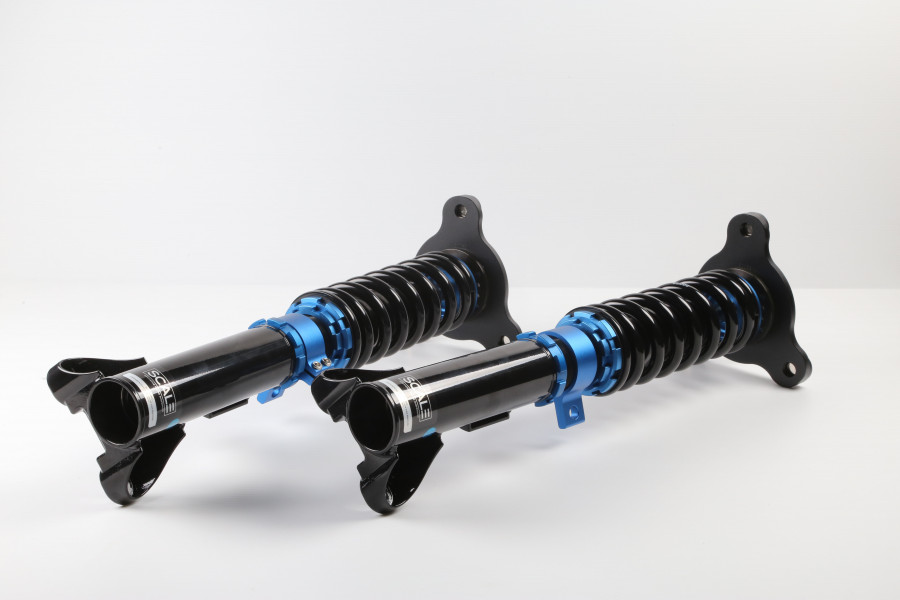

This model front Macpherson configuration comes with adjustable camber plate front top mounts to set your desired camber specs and avoid excessive tire wear. We recommend using the gravitational bearing option to reduce the effort of the camber plate.

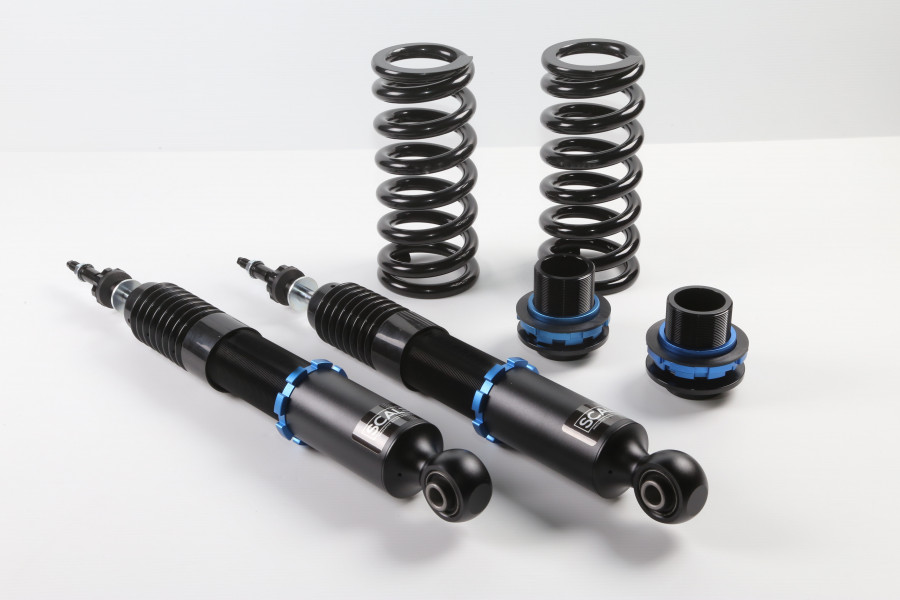

This rear divorced spring configuration uses a linear spring. Custom spring rate or length is not a problem.

Shock has no direct impact on wheel alignment, so if you need more adjustment than what your car offers from factory, you can check if a specialized company offers adjustable control arms.

Our mono-tube shock absorber are using high-quality CNC piston valves, synthetic oil and high-pressure nitrogen gas contained within one tube.

We can always customize the spring rate and shock length to fit your exact needs on this application.

Feel free to email our sales for any specific needs so they can help you figure out the best configuration for you.

Specs

Additional information

Weight 60 lbs
Dimensions 13 × 13 × 26 in
Warranty

Aluminium Type

Anodized Body

Assembly

,

Availability

Body Diameter

Default Spring Color

Internal Design

Number of Valving Selections

Powdercoated Body

Pressurized Charge

Shock Oil Type

Timeframe for Delivery

Condition

Make

Model

Year

, , , , , ,

Suspension Type Front

Suspension Type Rear
